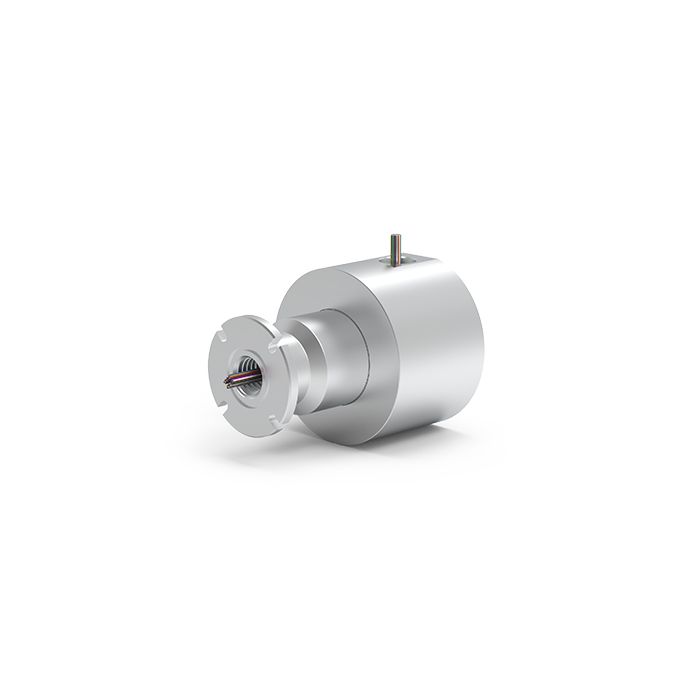

SRPE-100, Waterproof, Dustproof Slip Ring IP65 Enclosure

More Views

SRPE-100, Waterproof, Dustproof Slip Ring IP65 Enclosure
Product Code:
  • SRPE-100-R.A
IP65 rated, sealed, all-aluminum enclosure for enhanced protection against water and dust ingress with mounting capabilities and NPT connections for installing electrical conduit.

Availability: 31

Additional Information

Additional Information

Downloads SRPE Series Catalog PDF Drawing DWG [2D] STEP [3D]
Connection Type [Housing] 1/2" NPT
[Shaft] 1/2" NPT, Flange with O-Ring Gland for Optional Face Seal Connection
Max. Speed 250 RPM
Material Type Aluminum
Diameter 3.69" [93.7 mm]
Length 4.99" [126.7 mm]
Min. Torque 8 in-lbs. [0.90 Nm]
Dust / Water Protection IP65 rated. The SRPE-100 is designed to provide enhanced slip ring protection against water and dust ingress. Additional protection can be achieved when using electrical conduit (not included).
Slip Ring Compatibility This enclosure is compatible with the ES, ESM and ESE Series slip rings with the exception of the ES6A/ES6A-L and ES12A/ES12A-L.
Product Disclaimer Material type as listed is aluminum and does not include any plating or coating. Value listed for the minimum torque required to rotate. For specific torque or other requirements, please contact DSTI to discuss your application.


IP65: Enhanced Slip Ring Protection Against Water & Dust Ingress
To mitigate slip ring damage when used in harsh environments, the SRPE-100 is an all-aluminum, IP65 rated waterproof and dustproof slip ring protective enclosure for the ES, ESM and ESE Series (sold separately). It arrives with everything required to install an electrical slip ring.

Improve Protection by Installing Electrical Conduit
The protective enclosure includes 1/2" NPT threaded connections on both ends for installing electrical conduit as added protection against dust and water.

Flange Mount Allows Quick & Easy Equipment Integration
The shaft on the protective enclosure includes four slotted holes for quick and easy mounting. An o-ring face seal is included for additional protection against dust and water.

For more information, see IP65 Slip Ring Protective Enclosure (SRPE).
