Downloads SE Series Catalog PDF Drawing DWG [2D] STEP [3D] Number of Passages 8 Connection Type #4 SAE Max. Pressure 7,500 PSI [515 BAR] Max. Speed 300 RPM Media Type Air/Gas, Coolant, Oil/Hydraulic, Water/Glycol Performance Charts Pressure vs. Speed Data Material Type Carbon Steel Diameter 2.937" [74.6 mm] Length 7.360" [186.944 mm] Through Bore 0.375" [9.525 mm] Min. Torque 70 in-lbs [7.91 Nm] Product Disclaimer Suitable Water/Glycol or Coolant media must have rust inhibitors present. Oil/Hydraulic media must be petroleum-based. Please consult with DSTI for approval.
Values listed are dependent on a combination of all application parameters. Please note operational life is dependent upon both rotational speed and duty cycle. Contact DSTI if your application requires operating close to the maximum rotational speed with a continuous duty cycle.
Applications with temperatures above 220° F (105° C) require alternative seal materials. Please consult with DSTI regarding your specific application requirements.
Value listed for the minimum torque required to rotate is based on zero pressure with oil/hydraulic media. Required torque to rotate may be greater when using other media types or dry running. For specific torque requirements, please contact DSTI to discuss your application.

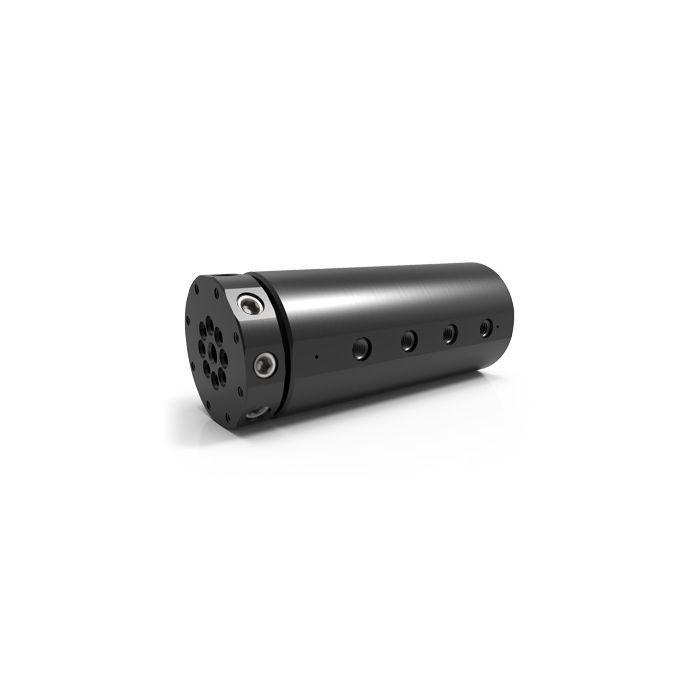

DetailsThe 8-passage, SE Series rotary unions are designed for appications with high pressures and limited space requirements. They feature SAE housing connections and shaft O-ring face seal glands for flush mounting the union to an interface (the threaded shaft connections are plugged).
The specialized sealing technology is suitable for vacuum and bidirectional pressures with independent flow passages capable of transferring different media types simultaneously.
The carbon steel (black oxide) construction is suitable for air/gas and hydraulic service, in addition to water/glycol and coolant when rust inhibitors are present.
For more information, see SE Series 8-Passage Rotary Unions.
