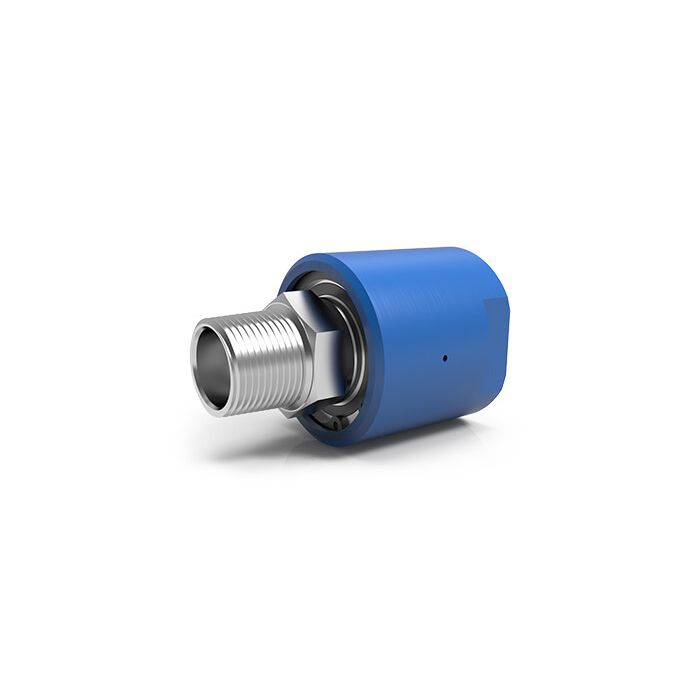

SPSM-5610-R.A (Air Service Only), 1-Passage Rotary Union, Rc1"-11 BSPT Connections, Aluminum / Stainless Steel
$521.00
SKU
SPSM-5610-R.A
The SPSM Series single passage rotary unions are compact, lightweight and corrosion-resistant featuring a stainless steel shaft and aluminum housing. All SPSM Series models come standard with a male threaded shaft and a female threaded housing for easy mounting.
| Number of Passages | 1 |
|---|---|
| Downloads | SPS Series Catalog |
| Media Type | Air/Gas |
| Min. Torque | 16 in-lbs [1.81 Nm] |
| Through Bore | N/A |
| Max. Speed | 500 RPM |
| Max. Pressure | 600 PSI [40 BAR] |
| Length | 3.130" [79.502 mm] |
| Diameter | 2.750" [69.85 mm] |
| Connection Type | Rc1"-11 BSPT |
| Material Type | Aluminum, Stainless Steel |
| Product Disclaimer | The use of liquid media is not recommended for this product. Please select from one of our other product lines or consult DSTI if your application requires use of liquid media. Values listed are dependent on a combination of all application parameters. Please note operational life is dependent upon both rotational speed and duty cycle. Contact DSTI if your application requires operating close to the maximum rotational speed with a continuous duty cycle. Applications with temperatures above 220° F (105° C) require alternative seal materials. Please consult with DSTI regarding your specific application requirements. Value listed for the minimum torque required to rotate is based on zero pressure with oil/hydraulic media. Required torque to rotate may be greater when using other media types or dry running. For specific torque requirements, please contact DSTI to discuss your application. |
