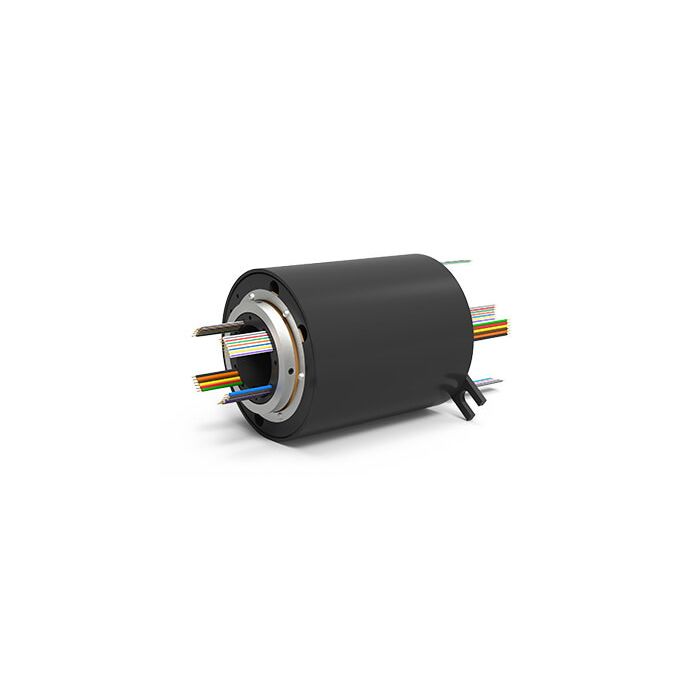

EST24 (AC4598-24), 24-Circuit Slip Ring, Through Bore, under 50 Mbps

$4,137.00

SKU

SR-EST24

The EST Series electrical through bore slip ring is a rotating assembly used to transfer power, control circuits or data (analog / digital) from stationary inlets to rotating outlets.

EST Series slip rings feature a 1.5 inch [38.1 mm] through bore for shaft mounting and incorporate low-wear, fiber brush contacts that do not require lubrication producing virtually no wear debris. Standard models are available from 6 to 24 circuits.

For more information, see EST Series Electrical Slip Rings.

More Information

More Information
Downloads	EST Series Catalog STEP [3D]
Dust / Water Protection	DSTI Slip Rings are designed with seals to help protect against dust, light splash and condensation. If your application requires additional protection, contact a member of our Sales Support Team to discuss options.
Electrical Noise	100 Milliohms (max.)
Wire Gauge (AWG) / Material	16 / Tin-Plated Copper
Contact Material	Silver
Voltage Rating	600V
Max. Data Speed	Under 50 Mbps [Non-Ethernet]
Max. Speed	250 RPM
Lead Wire Length	36" [914 mm]
Capsule Length	4.940" [125 mm]
(Circuits) Amps	(24x) 10A
Total Circuits	24
Product Disclaimer	Values are dependent on a combination of all application parameters. Please note operational life is dependent upon both rotational speed, duty cycle and temperature. In order to successfully transfer digital data signals, a variety of conditions must be met. Please consult with DSTI for approval. For the most reliable transfer of digital data signals, see our Ethernet slip ring options. All electrical components (including electrical slip rings) are non-returnable.
