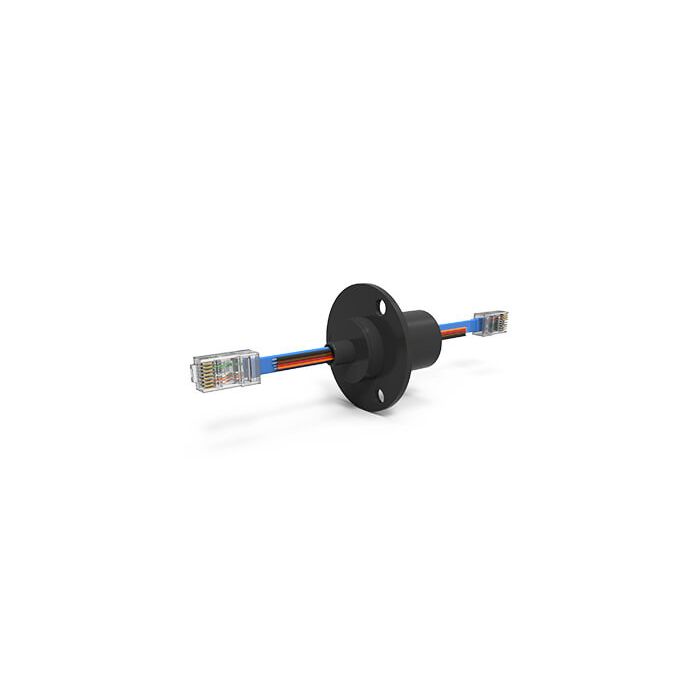

ESE224 (AC7203-18X), 8-Circuit Ethernet Slip Ring, Compact Capsule, 100 Mbps

$827.00

SKU

SR-ESE224

The ESE Series Ethernet slip ring is a rotating assembly used to transfer power, control circuits or data (analog / digital) from stationary inlets to rotating outlets.

ESE Series slip rings provide 100Base-T or 1000Base-T Ethernet connections with a combination of 2, 5, and 10 amp power connections. Utilizing high performance gold-on-gold contacts, the ESE Series features low electrical noise and Ethernet cables terminated with RJ45 connectors. Standard models are available from 8 to 51 circuits.

For more information, see ESE Series Ethernet Slip Rings.

More Information

More Information
Downloads	ESE Series Catalog STEP [3D]
Dust / Water Protection	DSTI Slip Rings are designed with seals to help protect against dust, light splash and condensation. If your application requires additional protection, contact a member of our Sales Support Team to discuss options.
Electrical Noise	60 Milliohms (max.)
Wire Gauge (AWG) / Material	26, 28 / Silver-Plated Copper
Contact Material	Gold
Voltage Rating	240V
Max. Data Speed	100 Mbps [100Base-T]
Max. Speed	250 RPM
Lead Wire Length	48" [1219 mm]
Capsule Length	1.680" [43 mm]
(Circuits) Amps	(2x) 2A, (2x) 10A, (1x) Ethernet
Total Circuits	8
Product Disclaimer	Values are dependent on a combination of all application parameters. Please note operational life is dependent upon both rotational speed, duty cycle and temperature. All electrical components (including electrical slip rings) are non-returnable.
