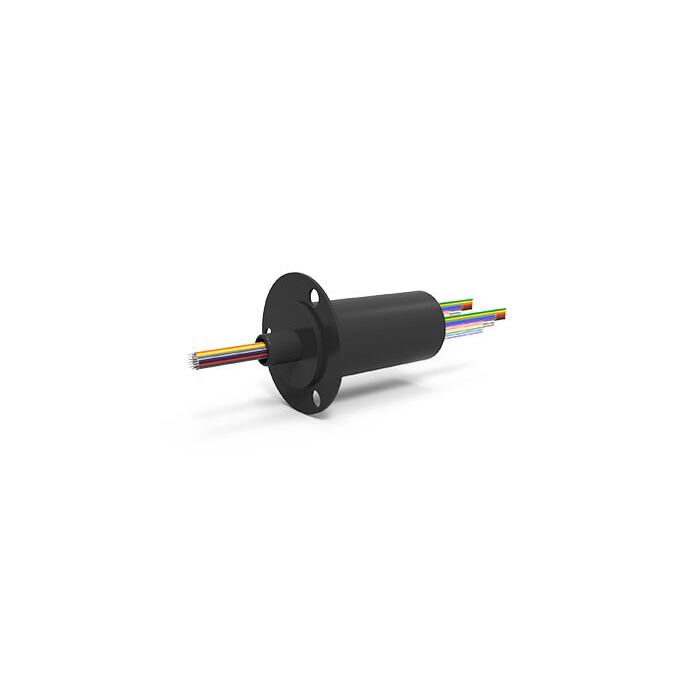

ES36 (AC6355-36), 36-Circuit Slip Ring, Compact Capsule, under 50 Mbps

$1,357.00

SKU

SR-ES36

The ES Series electrical slip ring is a rotating assembly used to transfer signals, control circuits or data (analog / digital) from stationary inlets to rotating outlets.

Versatile and compact, the ES Series electrical slip rings feature a low torque design with gold-on-gold contacts and offer low electrical noise. The ES Series also includes flexible, color-coded lead wires suitable for transferring analog and digital signals. Standard models are available from 6 to 56 circuits.

For more information, see ES Series Electrical Slip Rings.

More Information

More Information
Downloads	ES Series Catalog STEP [3D]
Dust / Water Protection	DSTI Slip Rings are designed with seals to help protect against dust, light splash and condensation. If your application requires additional protection, contact a member of our Sales Support Team to discuss options.
Electrical Noise	60 Milliohms (max.)
Wire Gauge (AWG) / Material	26 / Silver-Plated Copper
Contact Material	Gold
Voltage Rating	240V
Max. Data Speed	Under 50 Mbps [Non-Ethernet]
Max. Speed	250 RPM
Lead Wire Length	48" [1219 mm]
Capsule Length	2.600" [66 mm]
(Circuits) Amps	(36x) 2A
Total Circuits	36
Product Disclaimer	Values are dependent on a combination of all application parameters. Please note operational life is dependent upon both rotational speed, duty cycle and temperature. In order to successfully transfer digital data signals, a variety of conditions must be met. Please consult with DSTI for approval. For the most reliable transfer of digital data signals, see our Ethernet slip ring options. All electrical components (including electrical slip rings) are non-returnable.
