Downloads GP Series Catalog PDF Drawing DWG [2D] STEP [3D] Number of Passages 3 Connection Type G1"-11 BSPP Max. Pressure 7,500 PSI [515 BAR] Max. Speed 500 RPM Media Type Air/Gas, Coolant, Oil/Hydraulic, Water/Glycol Performance Charts Pressure vs. Speed Data Material Type Carbon Steel Diameter 6.937" [176.2 mm] Length 10.570" [268.479 mm] Min. Torque 24.7 ft-lbs [33.49 Nm] Product Disclaimer Suitable Water/Glycol or Coolant media must have rust inhibitors present. Oil/Hydraulic media must be petroleum-based. Please consult with DSTI for approval.
Values listed are dependent on a combination of all application parameters. Please note operational life is dependent upon both rotational speed and duty cycle. Contact DSTI if your application requires operating close to the maximum rotational speed with a continuous duty cycle.
Applications with temperatures above 220° F (105° C) require alternative seal materials. Please consult with DSTI regarding your specific application requirements.
Value listed for the minimum torque required to rotate is based on zero pressure with oil/hydraulic media. Required torque to rotate may be greater when using other media types or dry running. For specific torque requirements, please contact DSTI to discuss your application.

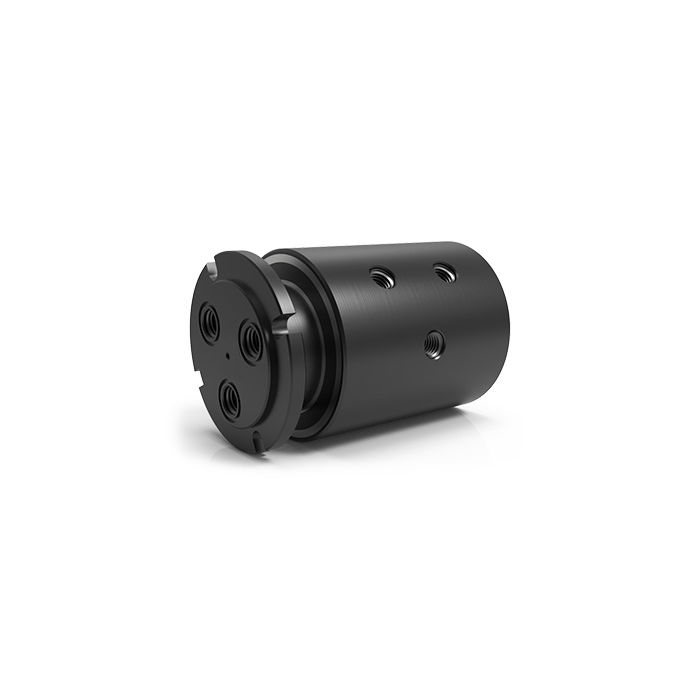

DetailsThe 3-passage, GPM Series rotary unions for general-purpose use, feature specialized sealing technology suitable for vacuum and bidirectional pressures and independent flow passages capable of transferring different media types simultaneously.
The carbon steel (black oxide) construction is suitable for air/gas and hydraulic service, in addition to water/glycol and coolant when rust inhibitors are present.
This model does not have O-ring face seal glands for flush mounting the union to an interface.
For more information, see GPM Series 3-Passage Rotary Unions.
