Downloads ESM Series Catalog STEP [3D] Total Circuits 32 (Circuits) Amps (4x) 5A, (28x) 2A Voltage Rating 240V Max. Data Speed Under 50 Mbps [Non-Ethernet] Max. Operating Speed 250 RPM Mounting Type Flange Capsule Length 2.600" [66 mm] Lead Wire Length 48" [1219 mm] Contact Material Gold Wire Gauge (AWG) / Material 16, 20 / Silver-Plated Copper Electrical Noise 60 Milliohms (max.) Dust / Water Protection DSTI Slip Rings are designed with seals to help protect against dust, light splash and condensation. If your application requires additional protection, contact a member of our Sales Support Team to discuss options. Product Disclaimer Values are dependent on a combination of all application parameters. Please note operational life is dependent upon both rotational speed, duty cycle and temperature.
In order to successfully transfer digital data signals, a variety of conditions must be met. Please consult with DSTI for approval. For the most reliable transfer of digital data signals, see our Ethernet slip ring options.
All electrical components (including electrical slip rings) are non-returnable.

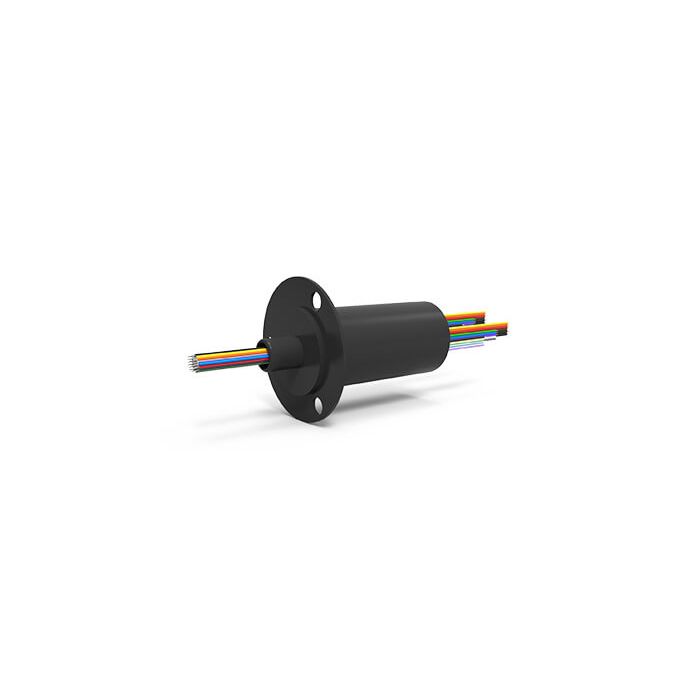

DetailsThe ESM Series electrical slip ring is a rotating assembly used to transfer power, control circuits or data (analog / digital) from stationary inlets to rotating outlets.
ESM Series slip rings include flexible, color-coded lead wires suitable for transferring analog and digital signals. Utilizing high performance gold-on-gold contacts, the ESM Series features low electrical noise and supports data speeds under 50 Mbps (non-Ethernet). Standard models are available from 9 to 52 circuits.
For more information, see ESM Series Electrical Slip Rings.
