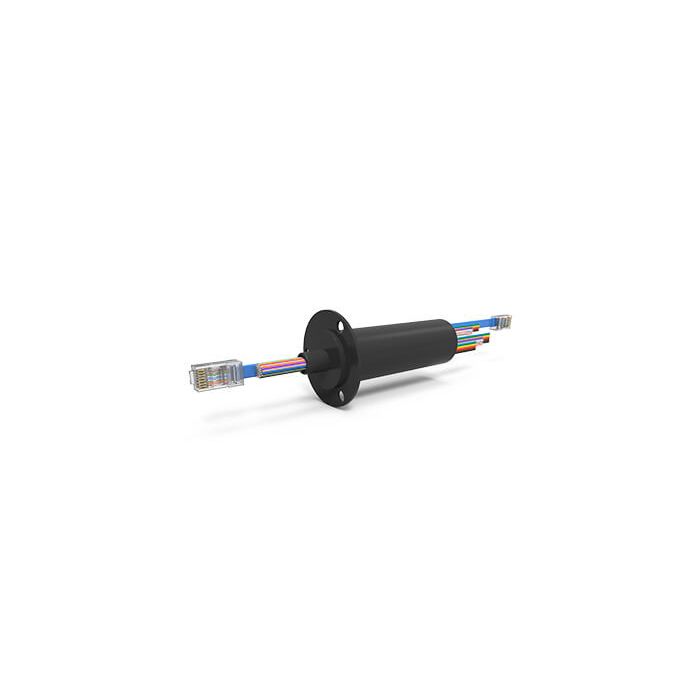

ESE438 (AC7195-NN), 51-Circuit Slip Ring, Compact Capsule, 1 Gbps

Product Code:
  • SR-ESE438
Compact capsule, 51-circuit slip ring, 1 Gbps max. data speed, replacement for AC7195-NN

Availability: 0



The ESE Series Ethernet slip ring is a rotating assembly used to transfer power, control circuits or data (analog / digital) from stationary inlets to rotating outlets.

ESE Series slip rings provide 100Base-T or 1000Base-T Ethernet connections with a combination of 2, 5, and 10 amp power connections. Utilizing high performance gold-on-gold contacts, the ESE Series features low electrical noise and Ethernet cables terminated with RJ45 connectors. Standard models are available from 8 to 51 circuits.

For more information, see ESE Series Electrical Slip Rings.
Additional Information

Additional Information

Downloads ESE Series Catalog
Total Circuits 51
(Circuits) Amps (43x) 2A, (1x) Ethernet
Voltage Rating 240V
Max. Data Speed 1 Gbps [1000Base-T]
Max. Operating Speed 250 RPM
Mounting Type Flange
Capsule Length 3.500" [89 mm]
Lead Wire Length 48" [1219 mm]
Contact Material Gold
Wire Gauge (AWG) / Material 26, 28 / Silver-Plated Copper
Electrical Noise 60 Milliohms (max.)
Dust / Water Protection DSTI Slip Rings are designed with seals to help protect against dust, light splash and condensation. If your application requires additional protection, contact a member of our Sales Support Team to discuss options.
Product Disclaimer Values are dependent on a combination of all application parameters. Please note operational life is dependent upon both rotational speed, duty cycle and temperature.

All electrical components (including electrical slip rings) are non-returnable.
