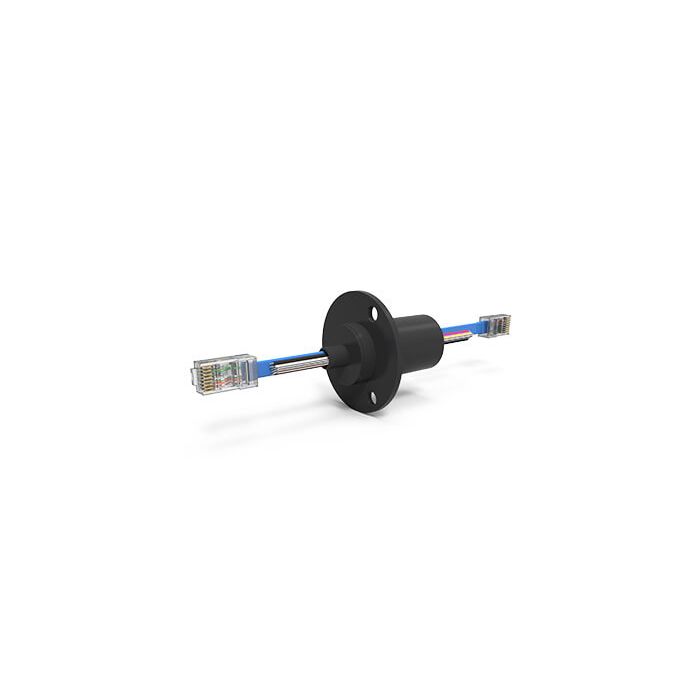

ESE2124 (AC7203-24V), 18-Circuit Slip Ring, Compact Capsule, 100 Mbps

$573.00
Product Code:
  • SR-ESE2124
Compact capsule, 18-circuit slip ring, 100 Mbps max. data speed, replacement for AC7203-24V

Availability: 7

$573.00
OR
Additional Information

Additional Information

Downloads ESE Series Catalog STEP [3D]
Total Circuits 18
(Circuits) Amps (12x) 2A, (2x) 5A, (1x) Ethernet
Voltage Rating 240V
Max. Data Speed 100 Mbps [100Base-T]
Max. Operating Speed 250 RPM
Mounting Type Flange
Capsule Length 1.950" [50 mm]
Lead Wire Length 48" [1219 mm]
Contact Material Gold
Wire Gauge (AWG) / Material 26, 28 / Silver-Plated Copper
Electrical Noise 60 Milliohms (max.)
Dust / Water Protection DSTI Slip Rings are designed with seals to help protect against dust, light splash and condensation. If your application requires additional protection, contact a member of our Sales Support Team to discuss options.
Product Disclaimer Values are dependent on a combination of all application parameters. Please note operational life is dependent upon both rotational speed, duty cycle and temperature.

All electrical components (including electrical slip rings) are non-returnable.
Description

Details

The ESE Series Ethernet slip ring is a rotating assembly used to transfer power, control circuits or data (analog / digital) from stationary inlets to rotating outlets.

ESE Series slip rings provide 100Base-T or 1000Base-T Ethernet connections with a combination of 2, 5, and 10 amp power connections. Utilizing high performance gold-on-gold contacts, the ESE Series features low electrical noise and Ethernet cables terminated with RJ45 connectors. Standard models are available from 8 to 51 circuits.

For more information, see ESE Series Electrical Slip Rings.
